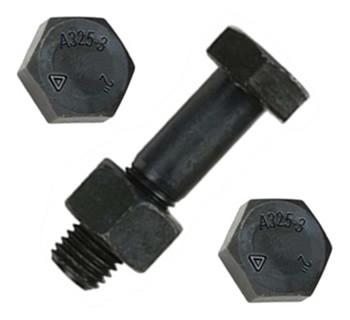

3/4 X 3 A325 BOLT ASSEMBLY

Local Branch: {{sku.name}}

Item #: HA325C34.3

Customer Item #: {{product.customerItemNumber}}

Manufacturer Item #: {{product.manufacturerProductCode}}

Manufacturer: {{product.manufacturerCode}}

Pkg Qty: {{product.pkgQty}}

Product Details

Structural A325  · A325 Structural Bolts are manufactured from Medium Carbon Steel, Heat Treated, Quenched, and Tempered. · Proof load and tensile strength are the same as grade 5 Cap Screws.The major difference is A325 has a Heavey Hex Head and slightly different thread lengths. · A325 is usually sold as a unit with a heavey hex nut and is primarily used in steel construction.
BRANDINFASCO
DIAMETER3/4"
FINISHBARE
GRADEA325
HEAD TYPEHeavy Hex
HEAD WIDTH1-1/4 Inch
LENGTH3"
MATERIALMedium Carbon Steel
OVERALL LENGTH3 Inch
THREADNC
THREAD PITCH10 TPI
THREAD SIZE3/4-10
THREAD TYPENC
WRENCH SIZE1-1/4"

BRAND Infasco
DIAMETER 3/4"
FINISH Bare
GRADE A325
HEAD TYPE Heavy Hex
HEAD WIDTH 1-1/4 Inch
LENGTH 3"
MATERIAL Medium Carbon Steel
OVERALL LENGTH 3 Inch
THREAD Nc
THREAD PITCH 10 Tpi
THREAD SIZE 3/4-10
THREAD TYPE Nc
WRENCH SIZE 1-1/4"
